Home >> Lincoln >> 2011 >> MKT Base, FWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams >> Memory Seats >> Notes

Memory Seats: Notes

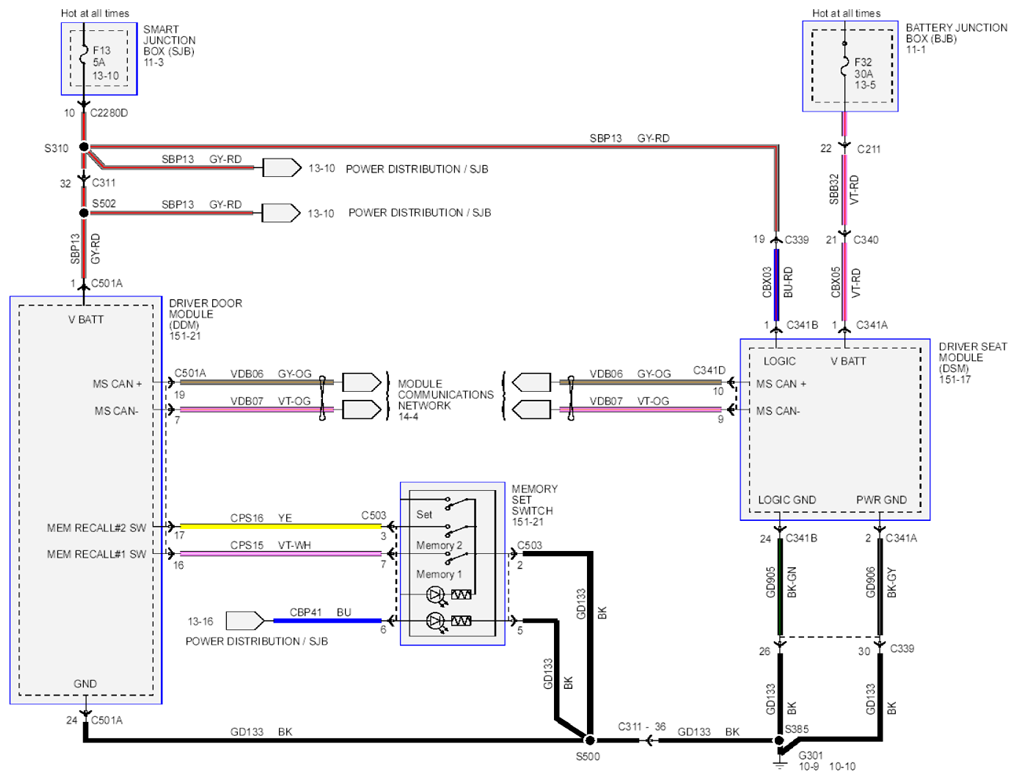

Fig 1: Memory Seats Circuit Diagram

G07880502

Courtesy of FORD MOTOR CO.
