Engine Mount: Notes
MATERIAL
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

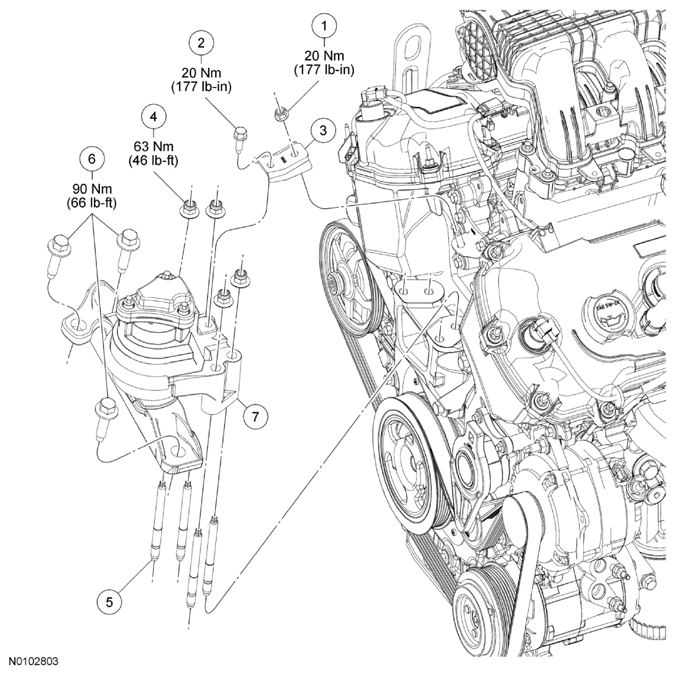

| Item | Part Number | Description |
|---|---|---|
| 1 | W520102 | Engine mount brace nut |
| 2 | W712511 | Engine mount brace bolt |
| 3 | 6K075 | Engine mount brace |
| 4 | W712334 | Engine mount-to-engine nut (4 required) |
| 5 | W714610 | Engine mount stud (4 required) |
| 6 | W712507 | Engine mount-to-frame bolt (3 required) |
| 7 | 6F012 | Engine mount |
