| 1 |
Bolts - M6 x 63 |
| 2 |
Bolts - M6 x 35 |
| 3 |
Cover - transfer plate |
| 4 |
Case-to-valve body transfer plate |
| 5 |
Separator plate - valve body-to-transfer plate |
| 6 |
Main control valve body |
| 7 |
Separator plate - main control valve body-to-lower valve body |
| 8 |

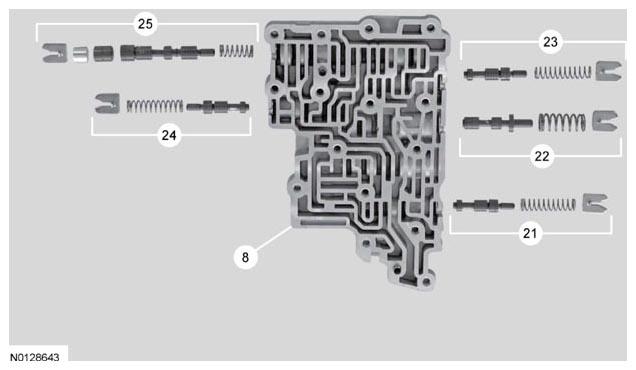

Lower valve body assembly |
| 9 |
Check balls |
| 10 |
Valve latch circuit check ball |
| 11 |
Low/reverse and overdrive clutch regulator valve assembly |
| 12 |
Torque Converter Clutch (TCC) regulator apply valve assembly |
| 13 |
Intermediate clutch regulator valve assembly |
| 14 |
Direct clutch regulator valve assembly |
| 15 |
Pressure regulator valve assembly |
| 16 |
Isolator valve assembly |
| 17 |
TCC control valve assembly |
| 18 |
Multiplex manual valve assembly |
| 19 |
Multiplex shift valve assembly |
| 20 |
Manual valve |
| 21 |
Direct clutch boost valve assembly |
| 22 |
Solenoid regulator valve assembly |
| 23 |
Low/reverse and overdrive clutch boost valve assembly |
| 24 |
Forward clutch boost valve assembly |
| 25 |
Forward clutch regulator valve assembly |
