Instrument Panel Fasteners: Notes

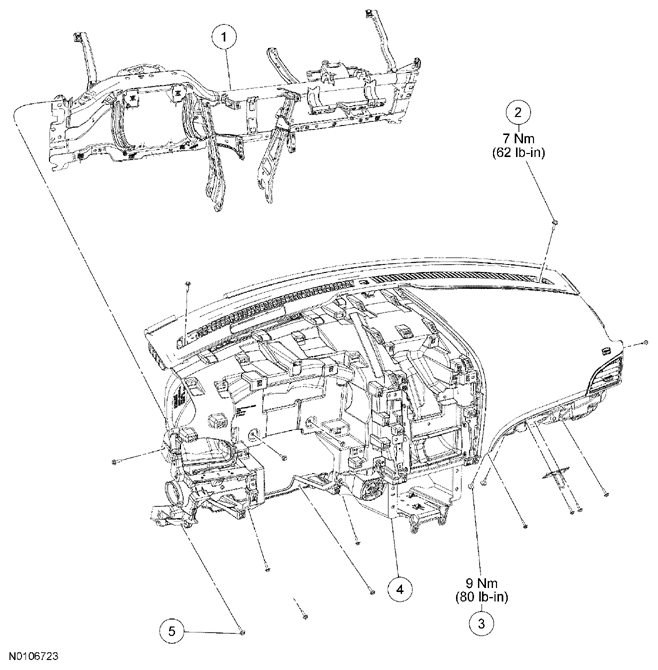

Fig 1: Instrument Panel Fasteners With Torque Specifications
G07797101Courtesy of FORD MOTOR CO.
Item Part Number Description
1 045045 In-vehicle crossbeam
2 N807316 Instrument panel upper bolt (2 required)
3 W706281 Passenger side air bag-to-crossbeam bolt (2 required)
4 04320 Instrument panel upper section
5 W707628 Instrument panel screw (13 required)
