Output Shaft Speed (OSS) Sensor: Notes

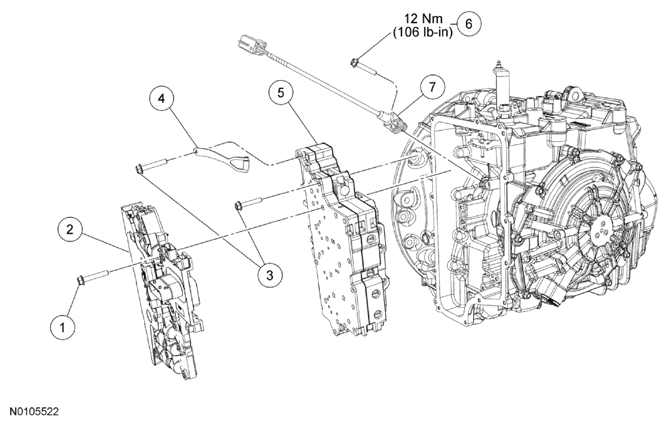

Fig 1: Output Shaft Speed Sensor Replacement Components With Torque Specifications
G07792967Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7J291 Bolt - solenoid body
2 7Z369 Solenoid body
3 7J291 Bolts - valve body
4 7E332 Manual valve detent spring
5 7A100 Valve body
6 7J283 Output Shaft Speed (OSS) sensor bolt
7 7H103 OSS sensor
