Digital Transmission Range (TR) Sensor: Notes
SPECIAL TOOL(S)
| Manual Lever Retaining Pin Installer 307-592 |

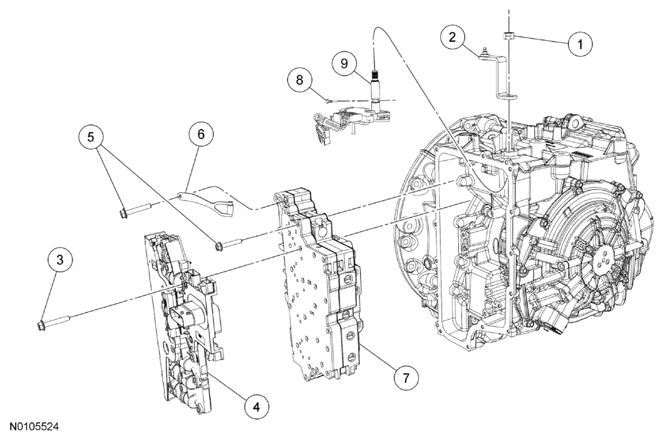

| Item | Part Number | Description |
|---|---|---|
| 1 | W711892 | Manual lever nut |
| 2 | 7A256 | Manual lever |
| 3 | 7J291 | Bolt - solenoid body |
| 4 | 7Z369 | Solenoid body |
| 5 | 7J291 | Bolts - valve body |
| 6 | 7E332 | Manual valve detent spring |
| 7 | 7A100 | Valve body |
| 8 | 7B210 | Transmission Range (TR) sensor pin |
| 9 | 7H557 | TR sensor |
