Stator Support and Gear Assembly: Assembly

  1. Install the Support Solid Seal Installer 307-579/3 on the stator support assembly.

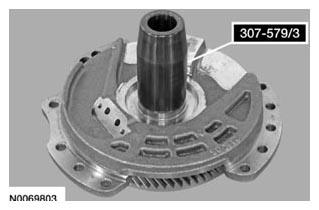

    Fig 1: Installing Support Solid Seal Installer 307-579/3 On Stator Support Assembly
    G07793414Courtesy of FORD MOTOR CO.
  2. Install a new seal on the Support Solid Seal Installer 307-579/3.

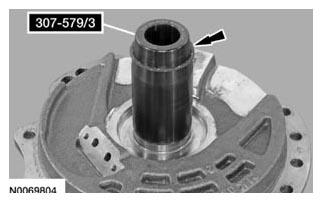

    Fig 2: Installing Seal On Support Solid Seal Installer 307-579/3
    G07793415Courtesy of FORD MOTOR CO.
  3. Install the Support Solid Seal Installer 307-579/2 on the Support Solid Seal Installer 307-579/3 and slide the seal in to the groove on the stator support assembly.

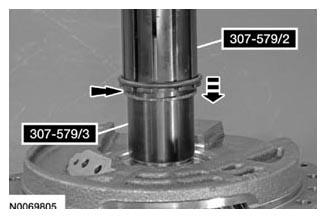

    Fig 3: Sliding Seal In To Stator Support Assembly Groove
    G07793416Courtesy of FORD MOTOR CO.
  4. Remove the Support Solid Seal Installer 307-579 (includes 307-579/2 and 307-579/3) from the stator support assembly.

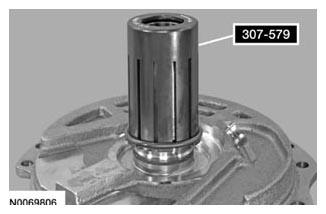

    Fig 4: Removing Support Solid Seal Installer 307-579 From Stator Support Assembly
    G07793417Courtesy of FORD MOTOR CO.
  5. Install the Support Solid Seal Installer 307-579/1 on the stator support assembly to size the seal.

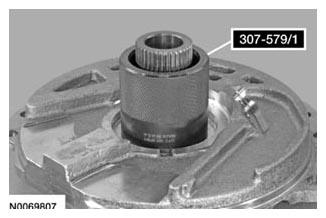

    Fig 5: Installing Support Solid Seal Installer 307-579/1 On Stator Support Assembly
    G07793418Courtesy of FORD MOTOR CO.
  6. Install a new gasket on the stator support assembly.

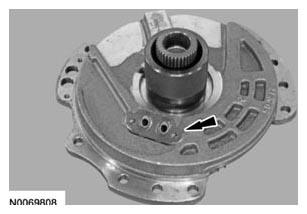

    Fig 6: Locating Stator Support Assembly Gasket
    G07793419Courtesy of FORD MOTOR CO.
  7. Position the stator support feed tube assembly in place and install the bolts hand-tight.

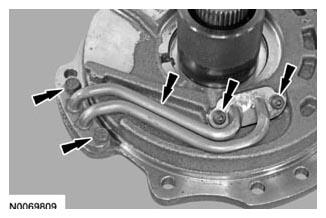

    Fig 7: Locating Feed Tube Assembly Bolts
    G07793420Courtesy of FORD MOTOR CO.
  8. Tighten the 2 stator support feed tube Torx head bolts.
    • Tighten to 7 Nm (62 lb-in).

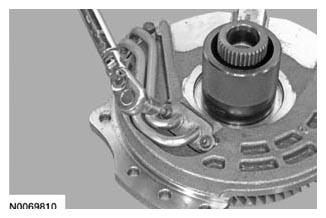

      Fig 8: Tightening Stator Support Feed Tube Torx Head Bolts
      G07793421Courtesy of FORD MOTOR CO.
  9. Tighten the 2 stator support feed tube hex-head bolts.
    • Tighten to 12 Nm (106 lb-in).

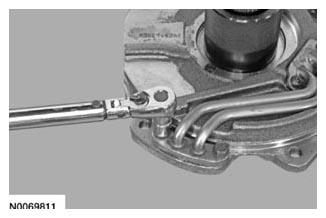

      Fig 9: Tightening Stator Support Feed Tube Hex-Head Bolts
      G07793422Courtesy of FORD MOTOR CO.
  10. Install a new input shaft seal on the Support Seal Installer 307-585.

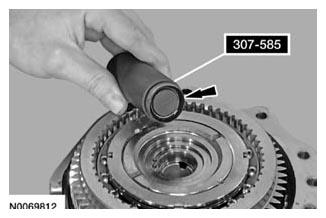

    Fig 10: Installing Input Shaft Seal On Support Seal Installer 307-585
    G07793423Courtesy of FORD MOTOR CO.
  11. Using the Support Seal Installer 307-585, install the input shaft seal.

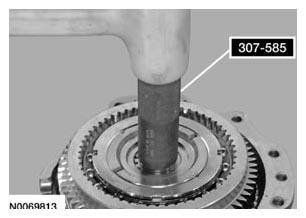

    Fig 11: Installing Input Shaft Seal Using Support Seal Installer 307-585
    G07793424Courtesy of FORD MOTOR CO.
  12. Remove the Support Seal Installer 307-579/1 from the stator support assembly.

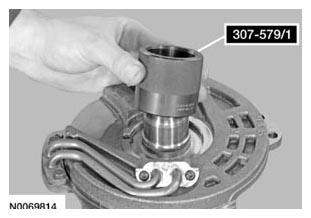

    Fig 12: Removing Support Seal Installer 307-579/1 From Stator Support Assembly
    G07793425Courtesy of FORD MOTOR CO.
  13. Install the drive sprocket thrust washer.
    Fig 13: Installing Drive Sprocket Thrust Washer
    G07793426Courtesy of FORD MOTOR CO.
  14. Install a new stator support assembly seal.

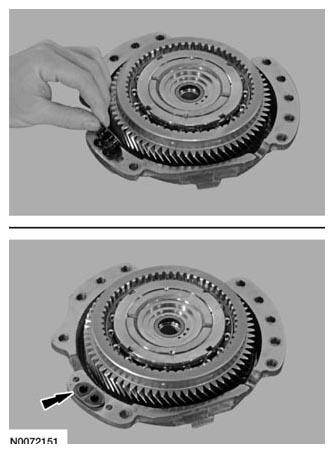

    Fig 14: Installing Stator Support Assembly Seal
    G07793427Courtesy of FORD MOTOR CO.
