Main Control Components

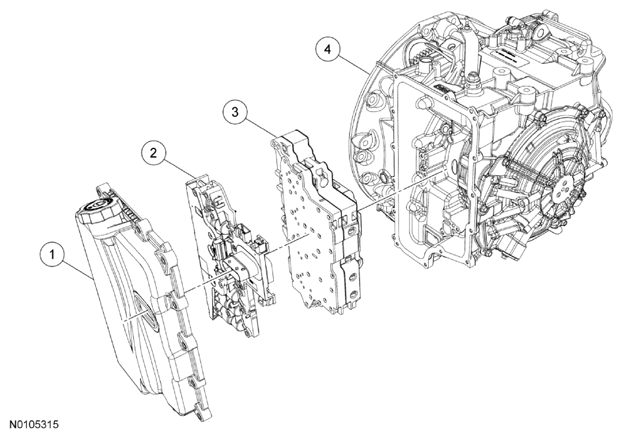

Fig 1: Identifying Main Control Assembly Components Location
G07792792Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7G004 Main control cover assembly
2 7Z369 Solenoid body
3 7A100 Main control valve body
4 7005 Transaxle case
