Front End Accessory Drive (FEAD) - Exploded View

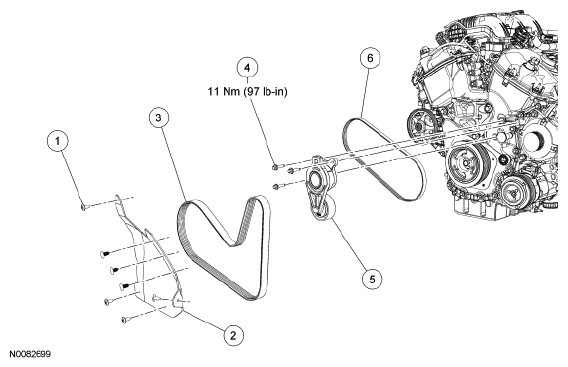

Fig 1: Exploded View Of Front End Accessory Drive (FEAD) Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	N705589	Pin-type retainer (7 required)
2	-	RH splash shield (part of 16102)
3	8620	Accessory drive belt
4	W503278	Accessory drive belt tensioner bolt (3 required)
5	6B209	Accessory drive belt tensioner
6	8620	Power steering pump drive belt (vehicles with Hydraulic Power Assist Steering (HPAS) only)

1. For additional information, refer to the appropriate procedures in this service information.
