Home >> Lincoln >> 2011 >> MKS Base, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> DATC HVAC Module Connector >> DATC HVAC Module Connector End View - C2356B

DATC HVAC Module Connector End View - C2356B

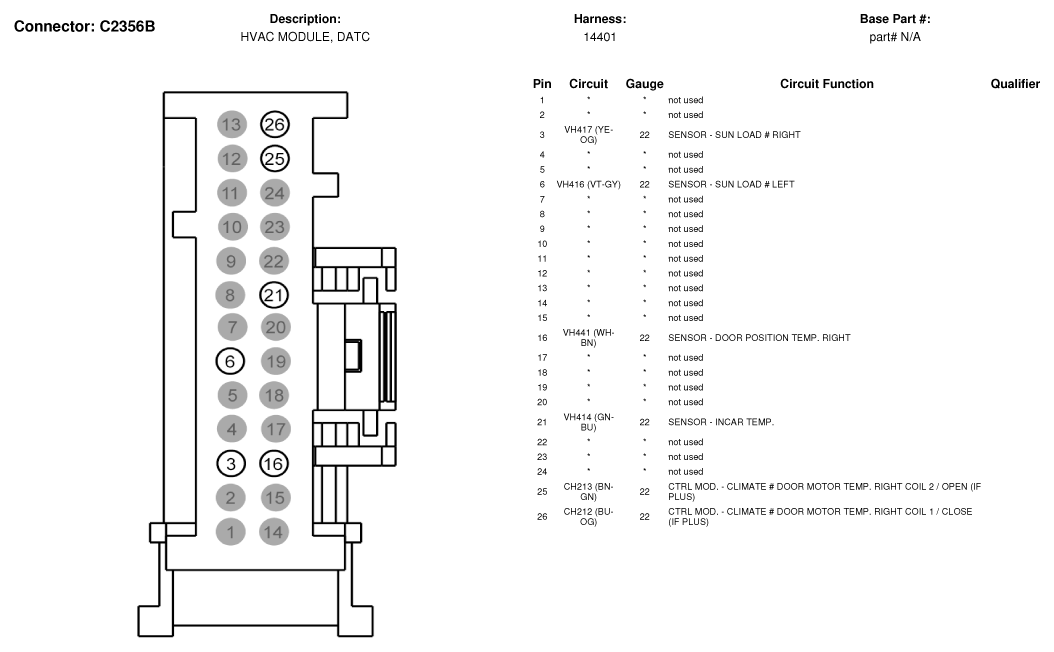

Fig 1: DATC HVAC Module Connector End View (C2356B)

G07330039

Courtesy of FORD MOTOR CO.
