Video Camera: Notes

Fig 1: Video Camera Replacement Components With Torque Specifications (1 Of 2)
G06754562Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W709764S424 License plate lamp housing nuts (4 required)
2 - License plate lamp housing
3 - Luggage compartment lid

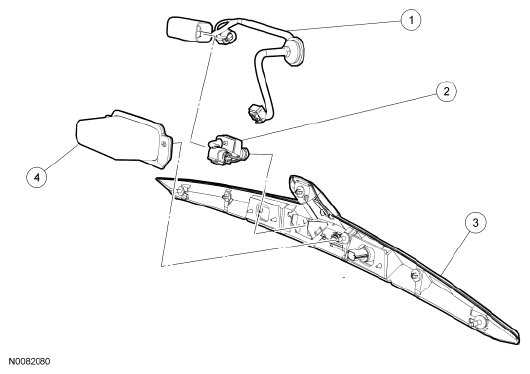

Fig 2: Identifying Video Camera Components (2 Of 2)
G06075474Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Video camera harness
2 19G490B Video camera
3 - License plate lamp housing
4 - Video camera cover
