Minimum Detectable Object Locations - Front Sensors

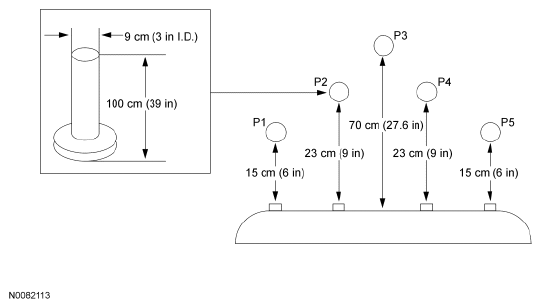

Fig 1: Identifying Front Sensors - Minimum Detectable Object Locations

G06075463

Courtesy of FORD MOTOR CO.
