Ambient Lighting Switch: Notes

WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

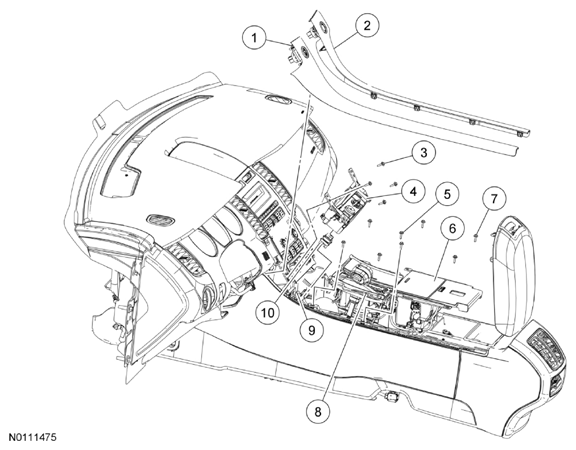

Fig 1: Identifying Ambient Lighting Switch Removal And Installation
G07811452Courtesy of FORD MOTOR CO.
Item Part Number Description
1 061A17 Floor console LH finish moulding
2 061A16 Floor console RH finish moulding
3 W707628 Media bin/storage compartment screw (4 required)
4 045P26 Media bin/storage compartment
5 W707628 Selector lever trim panel screw (4 required)
6 13560 Cup holder
7 W707628 Cup holder screw (4 required)
8 045A76A Selector lever trim panel
9 - Ambient lighting switch electrical connector (part of 14401)
10 13D806 Ambient lighting switch
