Parking Aid Module Connector End View - C4226A

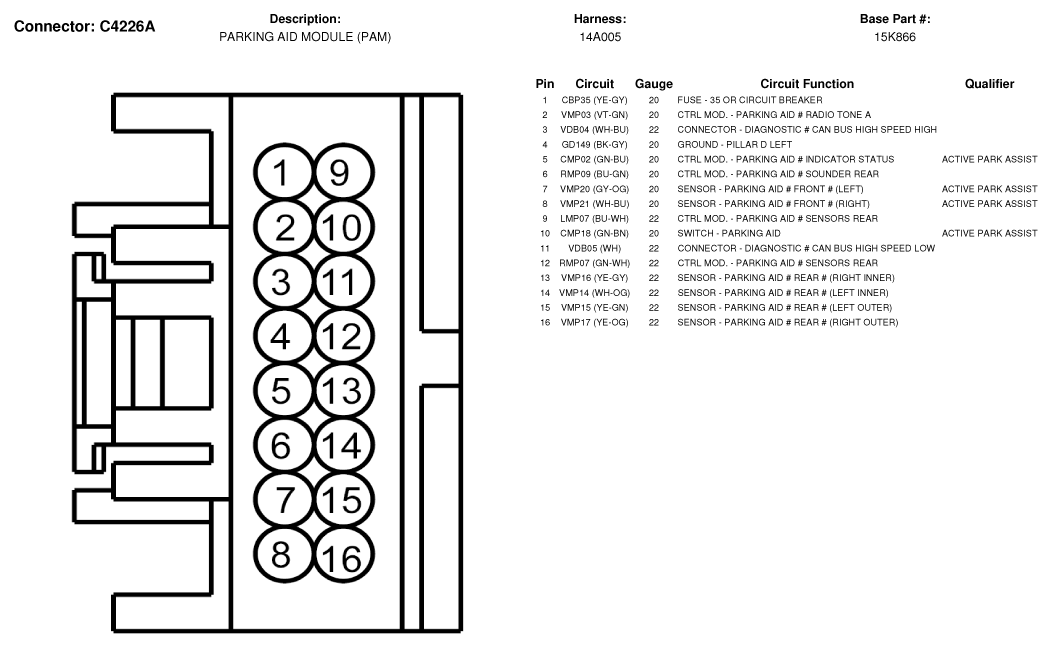

Fig 1: Parking Aid Module Connector End View (C4226A)

G07330118

Courtesy of FORD MOTOR CO.
