Home >> Lincoln >> 2011 >> MKS Base, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Memory Set Switch Connector - C503

Memory Set Switch Connector - C503

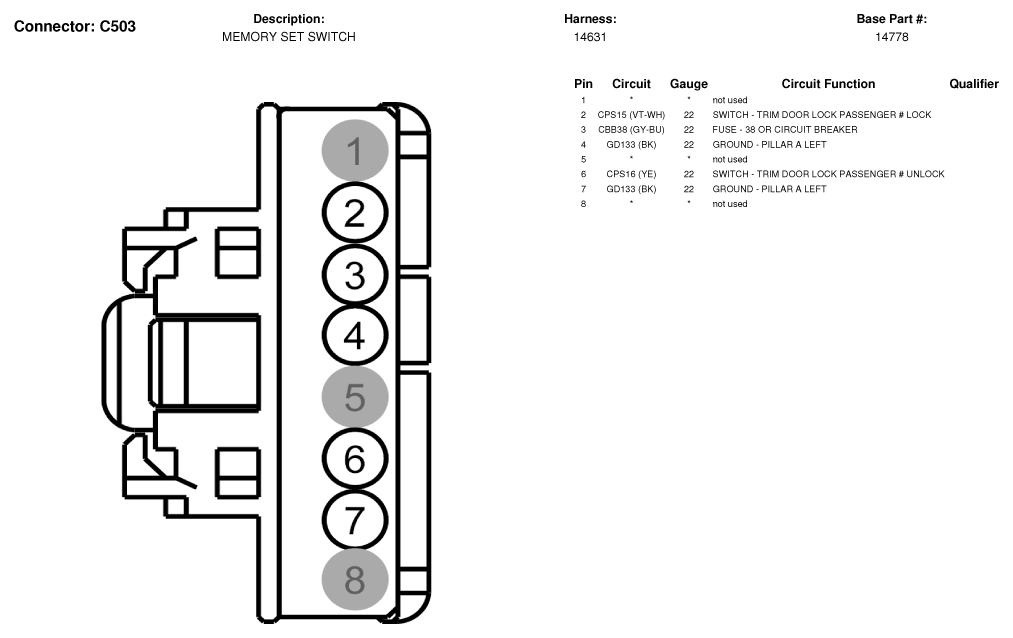

Fig 1: Memory Set Switch Connector End View (C503)

G07329897

Courtesy of FORD MOTOR CO.
