Master Window Control Switch Connector - C504

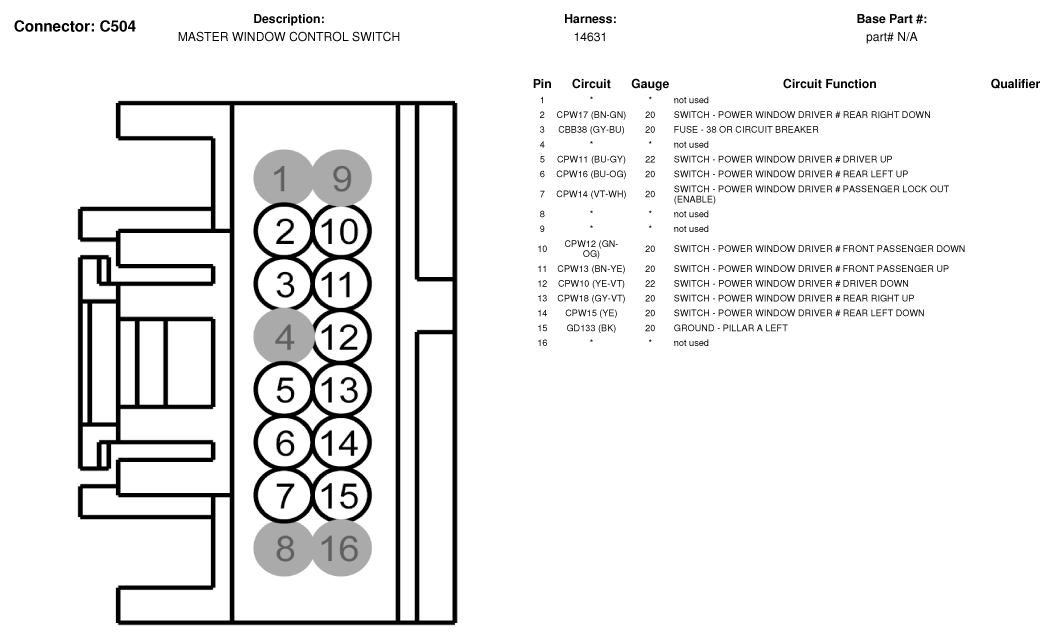

Fig 1: Master Window Control Switch Connector End View (C504)

G07329898

Courtesy of FORD MOTOR CO.
