Global Positioning System Module Connector - C2300

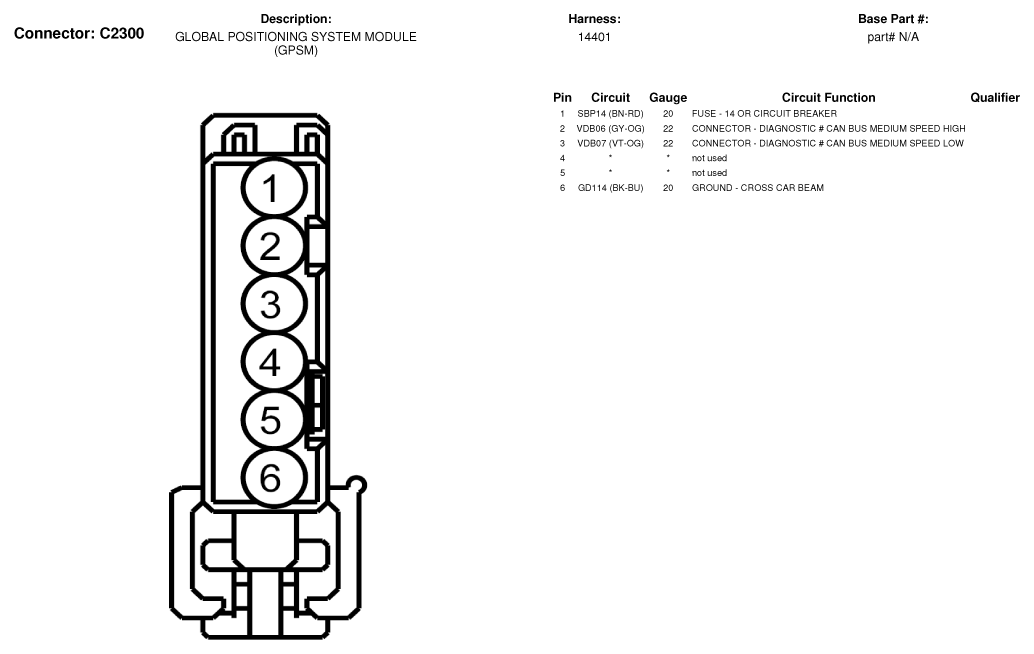

Fig 1: Global Positioning System Module Connector End View (C2300)

G07330035

Courtesy of FORD MOTOR CO.
