Home >> Lincoln >> 2011 >> MKS Base, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Cruise Control Module Connector - C1582

Cruise Control Module Connector - C1582

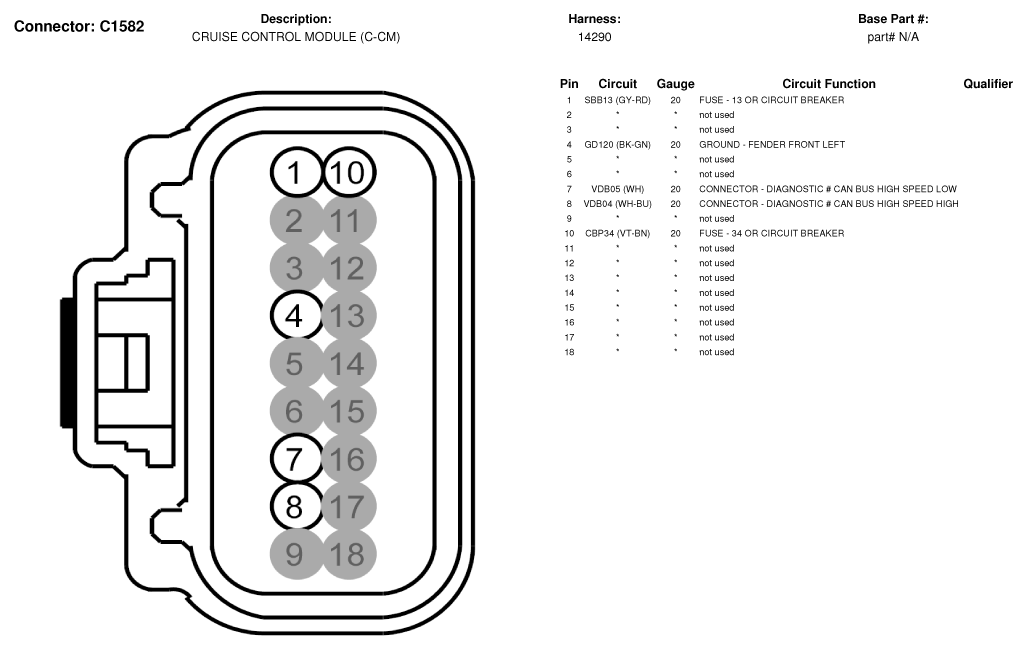

Fig 1: Cruise Control Module Connector End View (C1582)

G07329992

Courtesy of FORD MOTOR CO.
