Occupant Classification System Module (OCSM): Notes

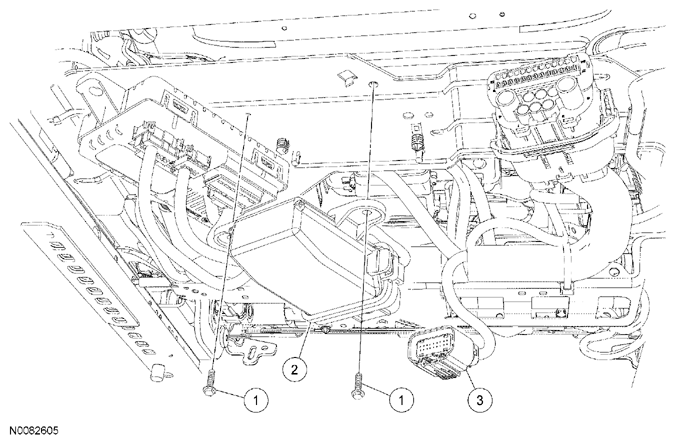

Fig 1: Identifying Occupant Classification System Module (OCSM) Components
G07820477Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Occupant Classification System Module (OCSM) screws
2 14B422 OCSM
3 - OCSM electrical connector (part of 14D230)
