Interior Lighting Control Module Connector - C2411

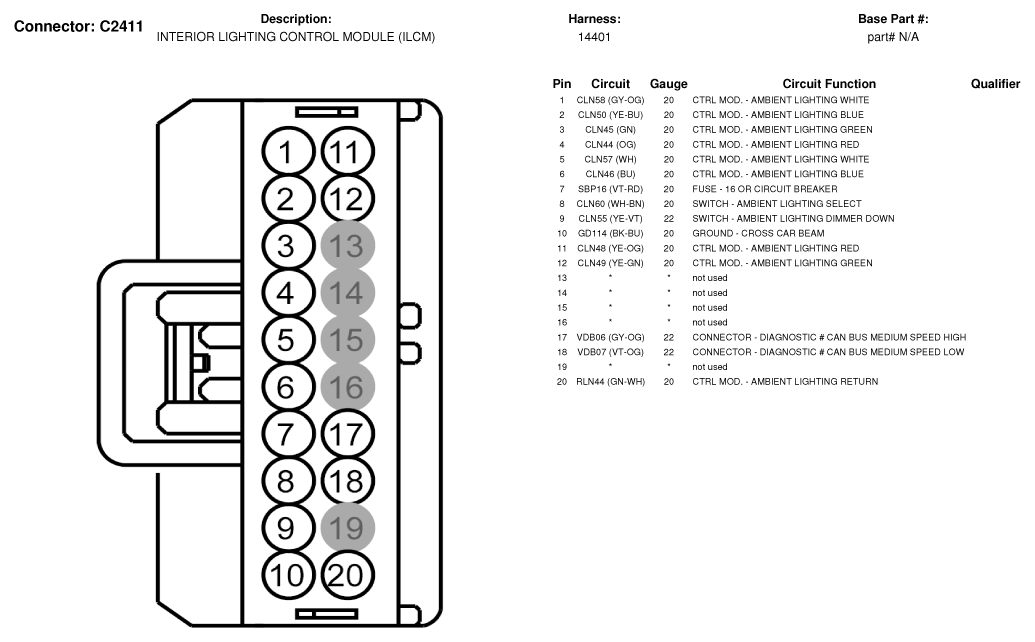

Fig 1: Interior Lighting Control Module Connector End View (C2411)

G07330047

Courtesy of FORD MOTOR CO.
