Quarter Panel Speaker: Notes

WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

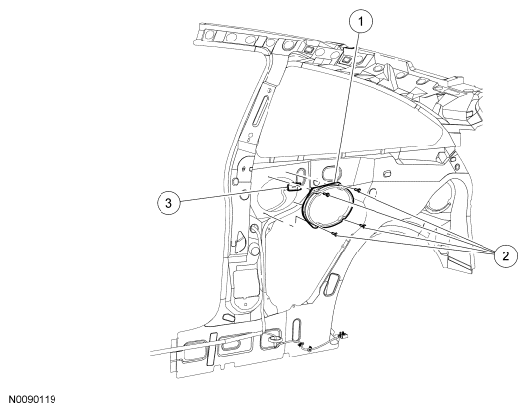

Fig 1: Identifying Quarter Panel Speaker With Screws And Electrical Connector
G06437289Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 18808 Quarter panel speaker
2 W701930-S Quarter panel speaker screws (4 required)
3 - Quarter panel speaker electrical connector (part of 14A005)
