Camshaft Position (CMP) Sensor: Material
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
DESCRIPTION CHART

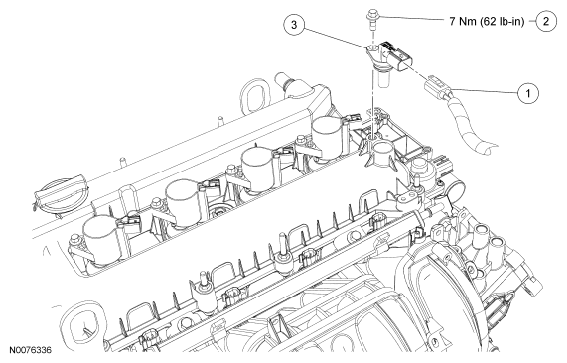

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Camshaft Position (CMP) sensor electrical connector |
| 2 | W701219 | CMP sensor bolt |
| 3 | 12K073 | CMP sensor |
