High Mounted Stoplamp: Notes

WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

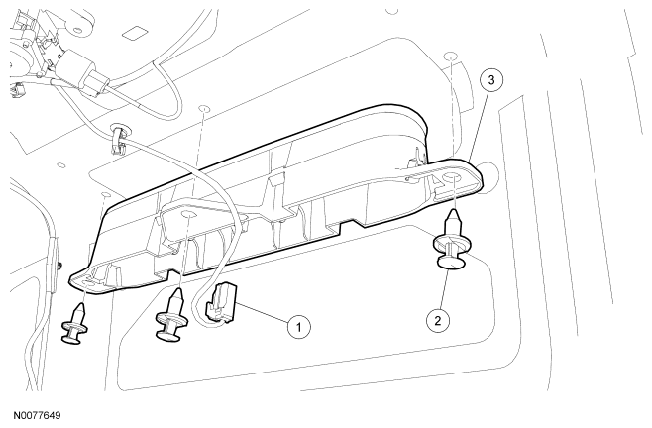

Fig 1: Identifying High Mounted Stoplamp With Pin-Type Retainers And Electrical Connector
G06437393Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - High mounted stoplamp electrical connector (part of 14A584)
2 N807389 High mounted stoplamp pin-type retainers (3 required)
3 13A613 High mounted stoplamp
