Front Brake Caliper: Material
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) | WSS-M6C62-A or WSS-M6C65-A1 |

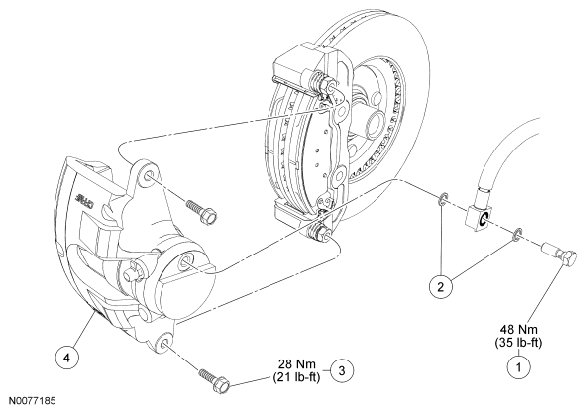

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W712276 | Brake caliper flow bolt |
| 2 | W712362 | Copper washers |
| 3 | - | Brake caliper guide pin bolt (2 required) (part of 2386) |
| 4 | 2B120 | Brake caliper |
