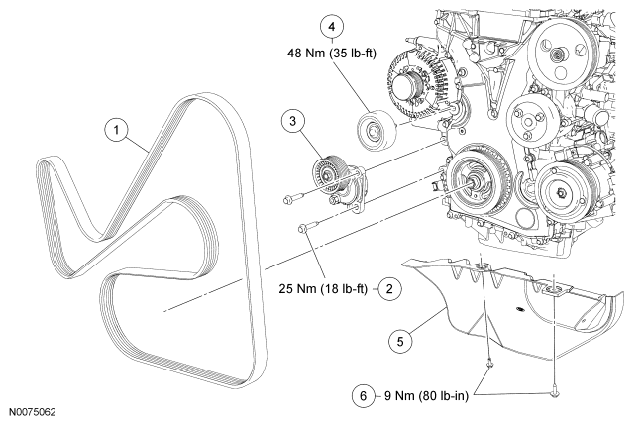

Front End Accessory Drive (FEAD) - Exploded View
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6C301 | Accessory drive belt |
| 2 | W701625 | Accessory drive belt tensioner bolt (2 required) |
| 3 | 6A228 | Accessory drive belt tensioner |
| 4 | 6C348 | Accessory drive belt idler pulley |
| 5 | 6775 | Accessory drive belt splash shield |
| 6 | - | Accessory drive belt splash shield bolts (2 required) |
- For additional information, refer to the appropriate procedures.
