EMTC HVAC Module Connector End View - C2357B

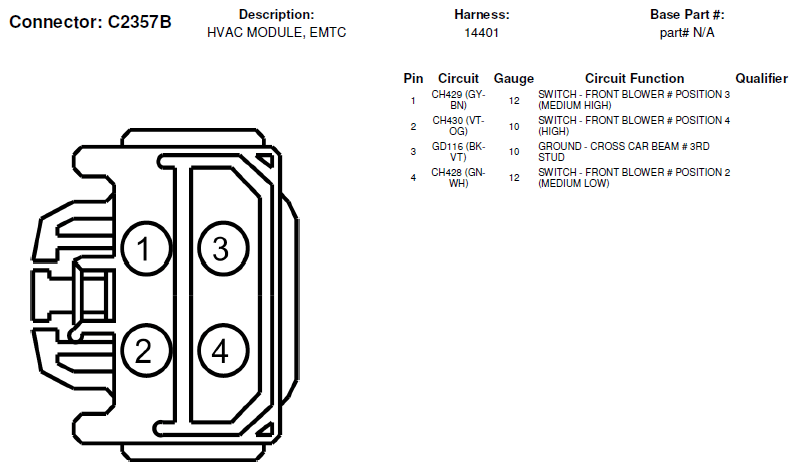

Fig 1: EMTC HVAC Module Connector End View (C2357B)

G06287292

Courtesy of FORD MOTOR CO.
