EMTC HVAC Module Connector End View - C2357A

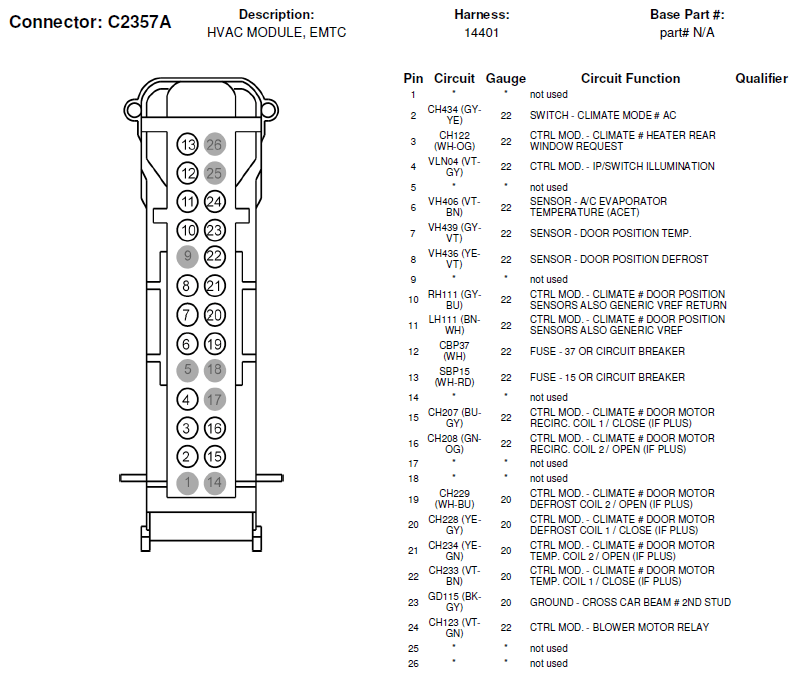

Fig 1: EMTC HVAC Module Connector End View (C2357A)

G06287291

Courtesy of FORD MOTOR CO.
