Accelerator Pedal and Bracket: Notes

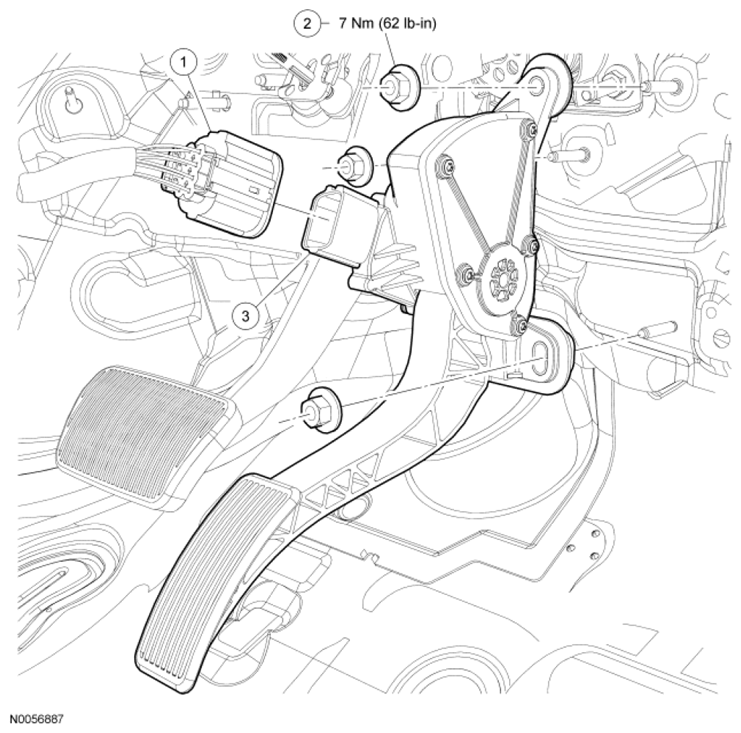

Fig 1: Accelerator Pedal And Bracket Replacement Components With Torque Specifications
G06505259Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 14A464 Accelerator pedal sensor electrical connector (part of 14290)
2 90907 Accelerator pedal nut (3 required)
3 9F836 Accelerator pedal and sensor assembly
