Safety Belt Retractor - Third Row: Notes

RH, Third Row Safety Belt Retractor

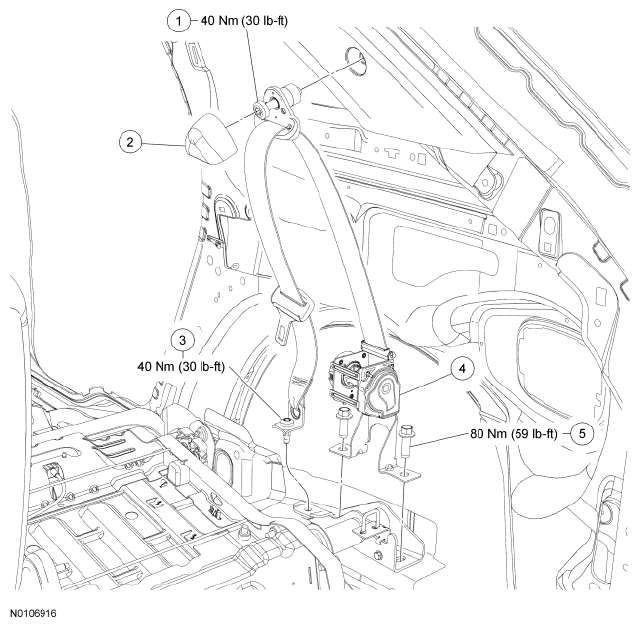

Fig 1: Safety Belt Retractor Replacement Components - RH Third Row With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	D-ring bolt (part of 612C16)
2	60262	D-ring cover
3	-	Anchor bolt (part of 612C16)
4	612C16	RH safety belt retractor
5	N807750	RH safety belt retractor bolt (2 required)

LH, Third Row Safety Belt Retractor

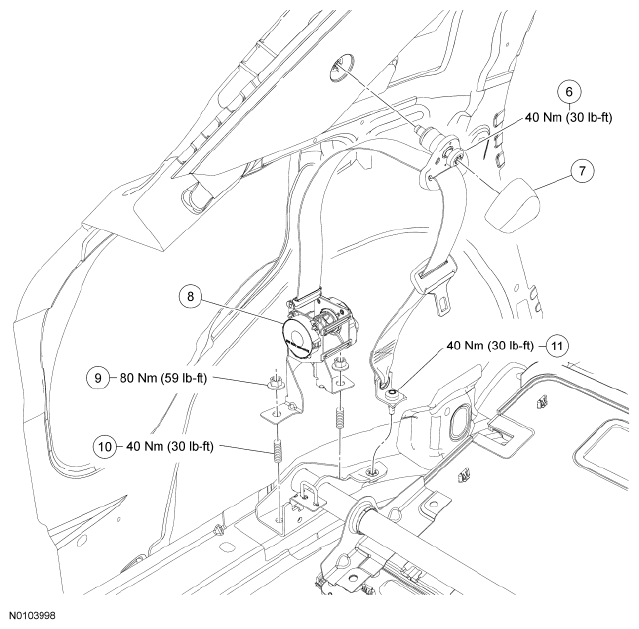

Fig 2: Safety Belt Retractor Replacement Components - LH Third Row With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART
