Right Front Wheel Speed Sensor Connector - C160

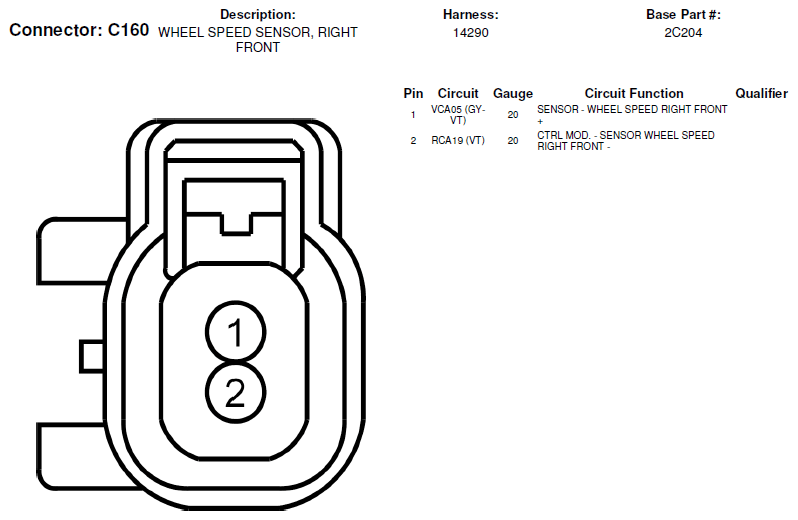

Fig 1: Right Front Wheel Speed Sensor Connector End View (C160)

G06374170

Courtesy of FORD MOTOR CO.
