Driver Side Front Door Lock Unit Connector - C525

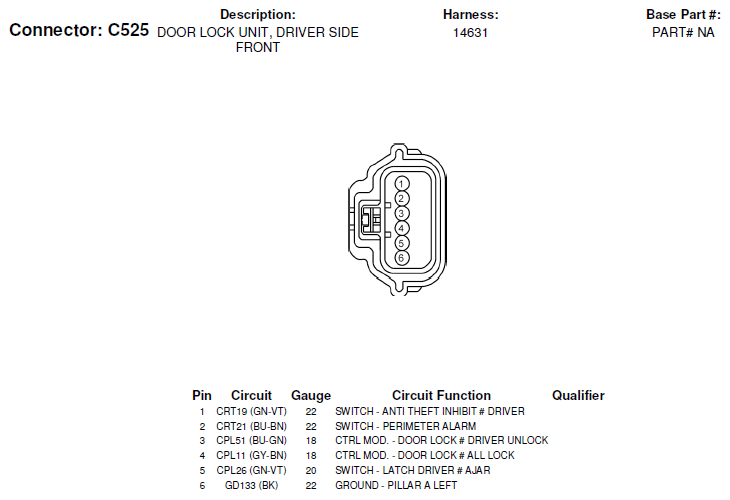

Fig 1: Driver Side Front Door Lock Unit Connector End View (C525)

G06374305

Courtesy of FORD MOTOR CO.
