Active Torque Control Coupling Solenoid Connector - C3347
Active Torque Control Coupling Solenoid Connector - C3347

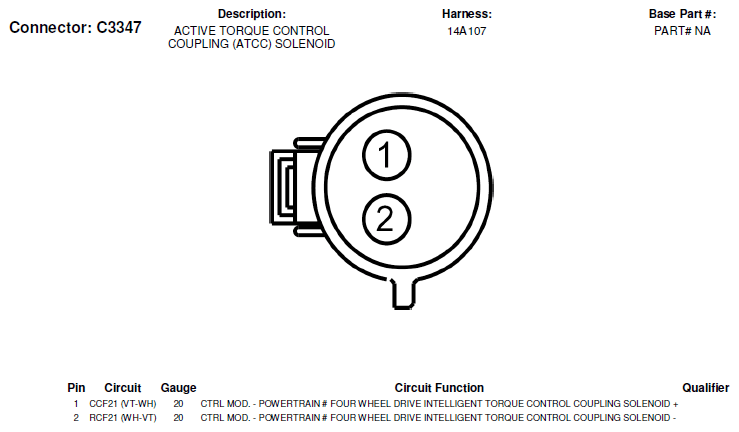

Fig 1: Active Torque Control Coupling Solenoid Connector End View (C3347)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
