Radiator - 3.7L: Notes

Radiator (View 1 of 2)

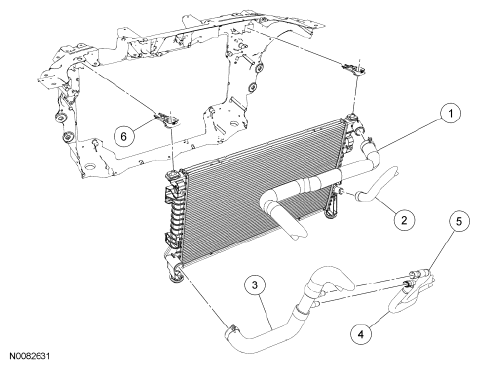

Fig 1: Identifying Radiator Components - 3.7L (1 Of 2)

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	8B274	Upper radiator hose
2	8W005	Lower degas bottle hose
3	8B273	Lower radiator hose
4	8N021	Oil cooler hose
5	8N021	Oil cooler hose
6	8A194	Upper radiator support bracket (2 required)

Radiator (View 2 of 2)

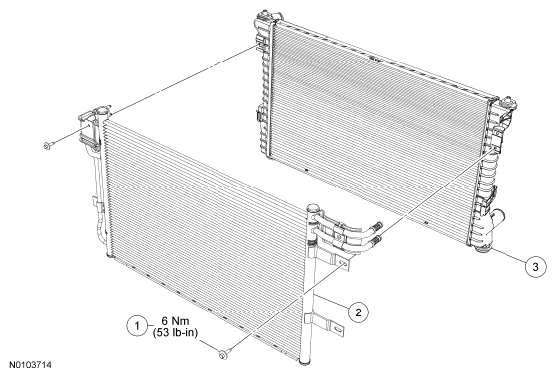

Fig 2: Radiator Replacement Components - 3.7L (2 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE
