Third Row Seat Control Switch Connector - C4179

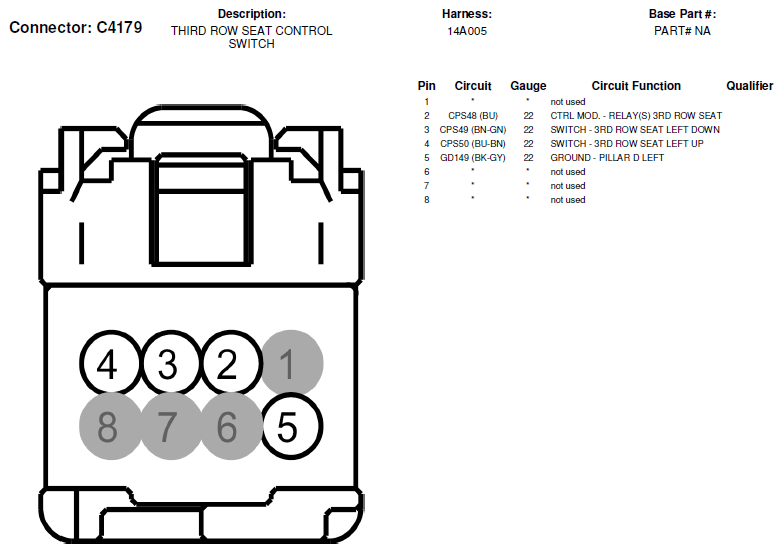

Fig 1: Third Row Seat Control Switch Connector End View (C4179)

G06374561

Courtesy of FORD MOTOR CO.
