Right Rear Window Control Switch Connector - C801

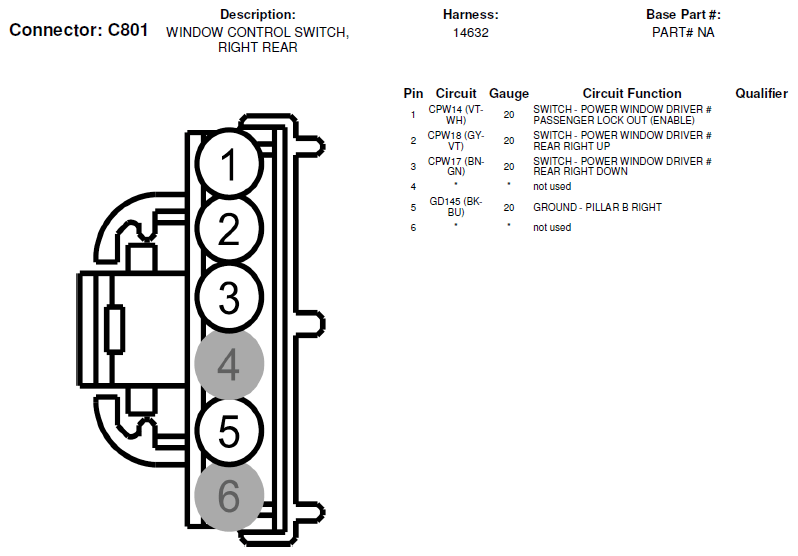

Fig 1: Right Rear Window Control Switch Connector End View (C801)

G06374326

Courtesy of FORD MOTOR CO.
