Left Rear Window Control Switch Connector - C701

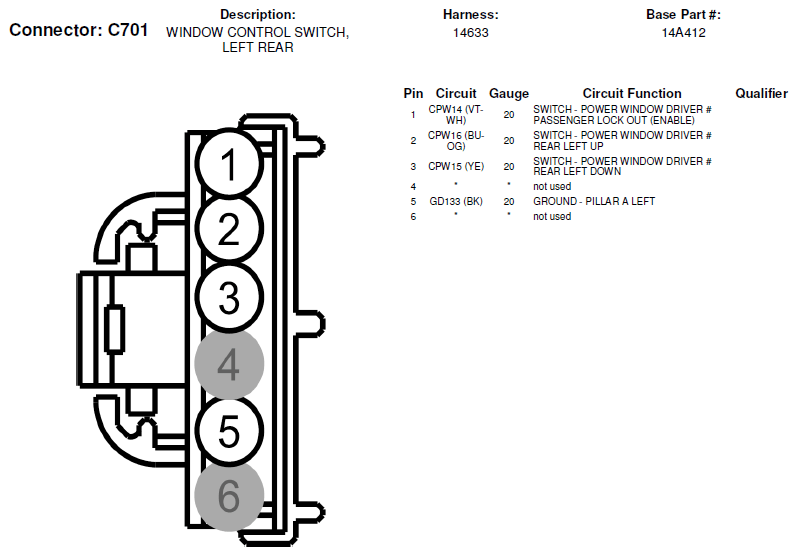

Fig 1: Left Rear Window Control Switch Connector End View (C701)

G06374319

Courtesy of FORD MOTOR CO.
