In-Vehicle Temperature Sensor Connector - C233

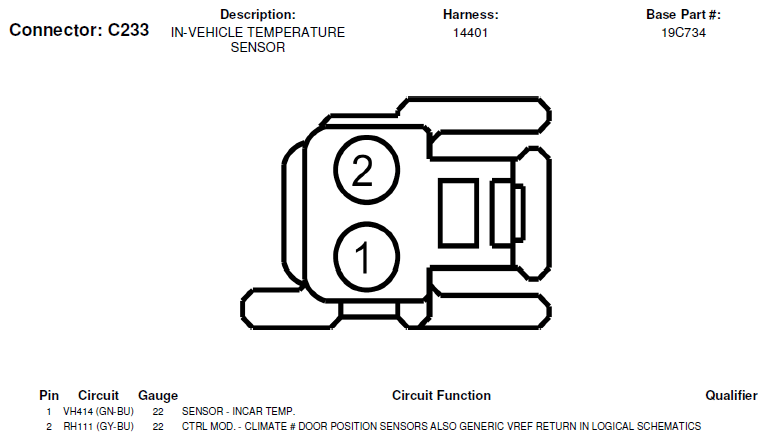

Fig 1: In-Vehicle Temperature Sensor Connector End View (C233)

G06374213

Courtesy of FORD MOTOR CO.
