Rear Entertainment Module Connector End View - C2949B

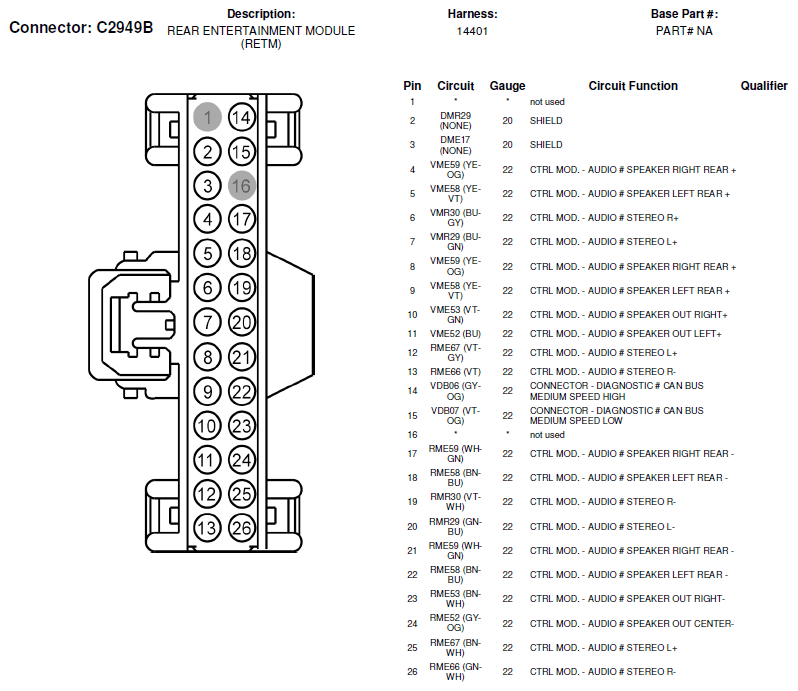

Fig 1: Rear Entertainment Module Connector End View (C2949B)

G06374433

Courtesy of FORD MOTOR CO.
