Seat - Exploded View, Front

Seat Cushion Side Shield

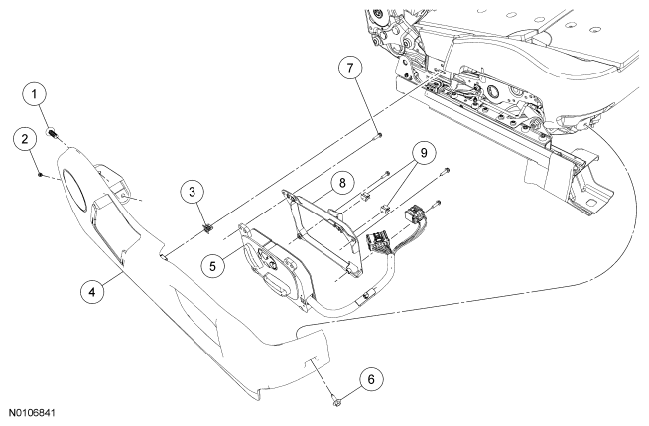

Fig 1: Identifying Seat Cushion Side Shield Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Seat Backrest - Trim Parts

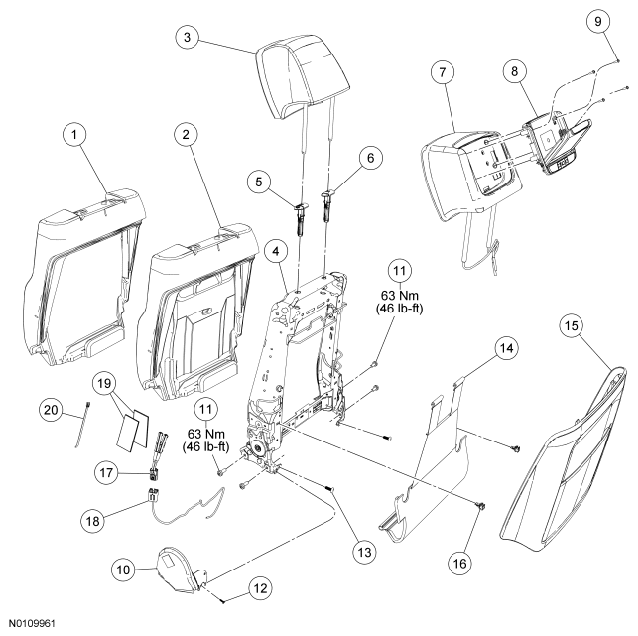

Fig 2: Seat Backrest Trim Parts With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	64416 RH/ 64417 LH	Backrest cover
2	64810 RH/ 64811 LH	Backrest foam pad
3	610A62	Head restraint (if equipped)
4	61018	Backrest frame
5	610A16	Head restraint guide sleeve, master
6	610A18	Head restraint guide sleeve, slave
7	611A08	Head restraint assembly with DVD pack (if equipped)
8	10E947	DVD player (if equipped)
9	W505943	Screw (4 required) (if equipped)
10	62186 RH/ 62187 LH	Recliner cover
11	W702016	Recliner-to-seat track bolts (4 required)
12	W710752	Scrivet
13	N811404	Pin-type retainer (2 required)
14	644K64	Carpet flap toe-kick
15	60770	Backrest panel
16	W714417	Backrest panel clip (2 required)
17	18N802	DVD player jumper wire harness
18	14D232	DVD player wire harness
19	19H207	Foam wrap (if equipped)
20	14A163	Tie-strap (if equipped)

Seat Backrest - Frame Parts

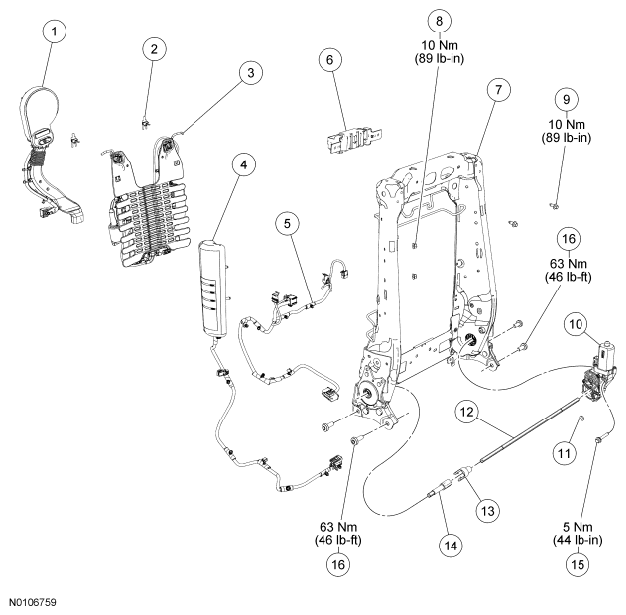

Fig 3: Seat Backrest Frame Parts With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	19N550	Backrest Thermo-Electric Device (TED) (if equipped)
2	W790133	Power lumbar clip (2 required)
3	65500	Power lumbar adjust assembly
4	611D10	Side air bag module
5	14D232	Backrest wire harness
6	-	Damper (passenger seat with DVD player only)
7	61018	Backrest frame
8	W520111	Side air bag module-to-backrest frame nut (2 required)
9	W704621	Damper-to-backrest frame bolt (passenger seat with DVD player only) (2 required)
10	14547	Power recline motor (if equipped)
11	61479	Recliner shaft E-clip (if equipped)
12	613A68	Long recliner shaft (if equipped)
13	613A68	Sleeve (if equipped)
14	613A68	Short recliner shaft (if equipped)
15	W701242	Power recline motor bolt (if equipped)
16	W702016	Recliner-to-seat track bolts (4 required)

Driver Seat Track

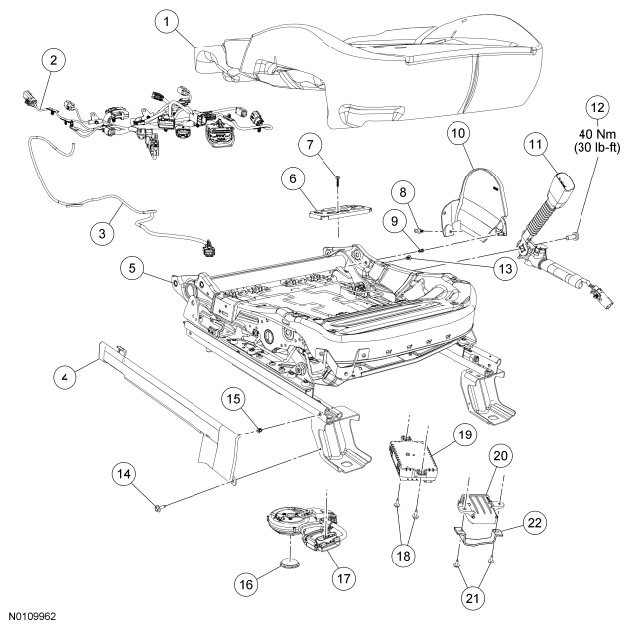

Fig 4: Driver Seat Track Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	62901/632A23	Cushion cover/ cushion foam pad
2	W712978	Safety belt buckle and pretensioner bolt
3	61203	Safety belt buckle and pretensioner
4	62187	Recliner cover
5	W705635	Pin-type retainer
6	W710752	Scrivet
7	-	Barrel retainer (part of 62187)
8	-	Cushion Thermo-Electric Device (TED) adapter plate screw (part of 19N550)
9	-	Cushion TED adapter plate (part of 19N550)
10	61711	Seat track
11	14D231	Cushion wire harness
12	14D232	DVD player wire harness (if equipped)
13	61749	Seat track cover
14	14B416	Seat position sensor
15	-	Seat position sensor clip (part of 14B416)
16	W714217	Barrel retainer
17	19N550	Cushion TED
18	W505153	Screw
19	19E880	Cushion TED filter
20	14C708	Driver Seat Module (DSM)
21	W505153	Screw
22	14536	DVD player bracket (if equipped)

Passenger Seat Track

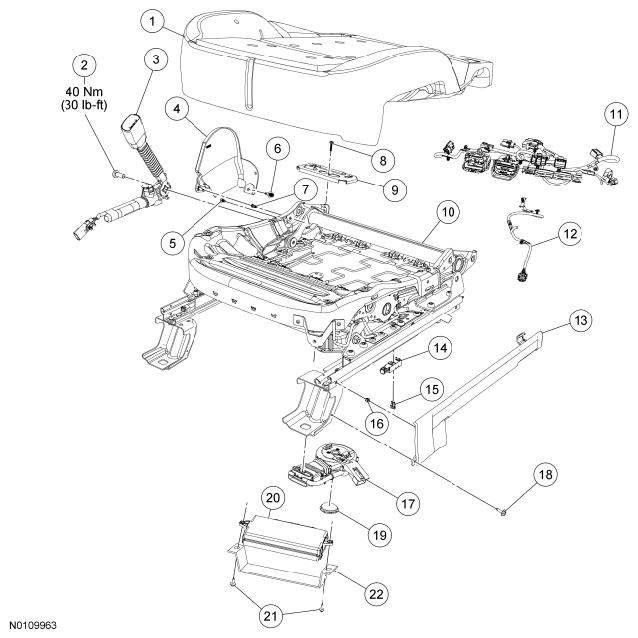

Fig 5: Passenger Seat Track Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	62900/632A22	Cushion cover/ cushion foam pad
2	14D230	Cushion wire harness
3	14D232	DVD player wire harness (if equipped)
4	61748	Seat track cover
5	61710	Seat track
6	-	Cushion Thermo-Electric Device (TED) adapter plate (part of 19N550)
7	W705635	Cushion TED adapter plate screw (part of 19N550)
8	W710752	Scrivet
9	-	Barrel retainer (part of 62186)
10	62186	Recliner cover
11	61202	Safety belt buckle and pretensioner
12	W712978	Safety belt buckle and pretensioner bolt
13	W705635	Pin-type retainer
14	W505153	Screw
15	W714217	Barrel retainer
16	19E880	Cushion TED filter
17	19N550	Cushion TED
18	W505153	Screws
19	14C724	Dual Climate Controlled Seat Module (DCSM)
20	14B056	Occupant Classification System Module (OCSM)
21	W505153	Screws
22	14536	DVD player bracket (if equipped)
