Throttle Body - 3.7L: Notes

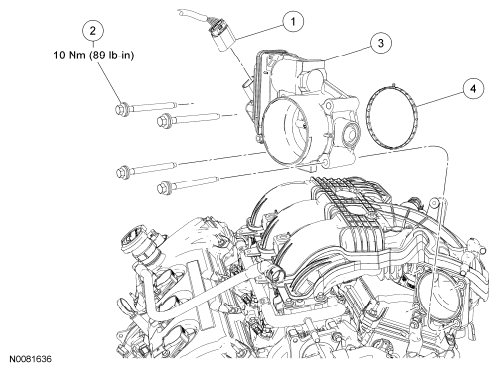

Fig 1: Throttle Body With Torque Specifications -- 3.7L
G06261343
ITEM DESCRIPTION TABLE

Item Part Number Description
1 14A464 Electronic throttle control electrical connector (part of 12B637)
2 W503285 Throttle Body (TB) bolt (4 required)
3 9E926 TB
4 9E936 TB  gasket
