Home >> Lincoln >> 2010 >> MKT Base, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Interior Lighting Control Module Connector - C3256

Interior Lighting Control Module Connector - C3256

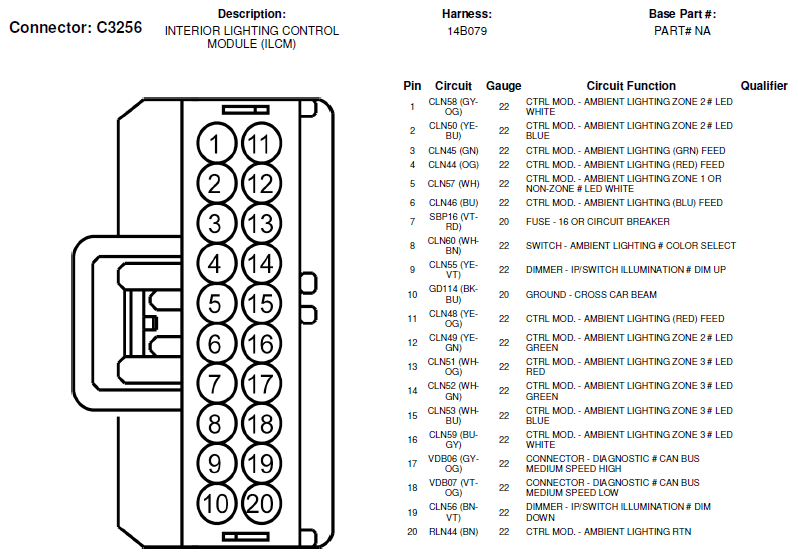

Fig 1: Interior Lighting Control Module Connector End View (C3256)

G06374494

Courtesy of FORD MOTOR CO.
