Front Controls Interface Module (FCIM): Notes

NOTE: Vehicle with navigation shown in illustration, others similar.

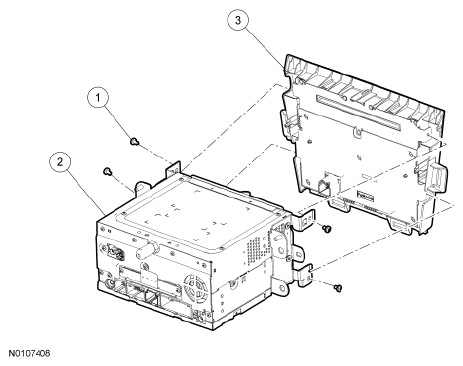

Fig 1: Identifying Front Controls Interface Module With Screws And ACM

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W505510-S	Front Controls Interface Module (FCIM) screws (4 required)
2	18C963/18806	ACM  (without navigation/ with navigation)
3	18842	FCIM
