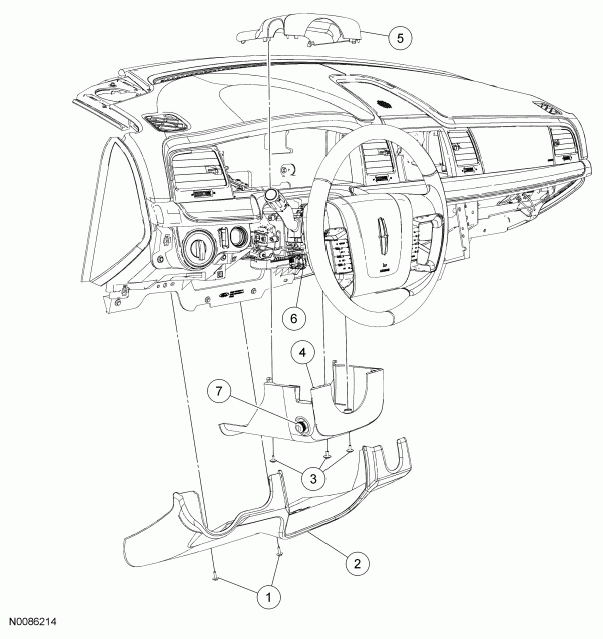

Steering Column Shroud: Notes
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | N808453 | Steering column opening trim panel screws (2 required) |
| 2 | 044F08 | Steering column opening trim panel |
| 3 | N713507 | Steering column shroud screws (3 required) |
| 4 | 3533 | Lower steering column shroud |
| 5 | 3530 | Upper steering column shroud |
| 6 | - | Steering column control switch electrical connector (part of 14401) |
| 7 | 3B504 | Steering column control switch |
