Steering Wheel Rotation Sensor Connector - C226

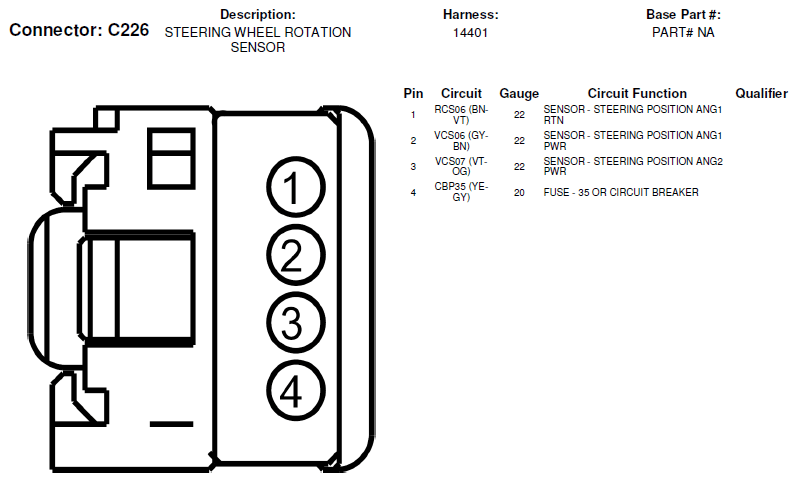

Fig 1: Steering Wheel Rotation Sensor Connector End View (C226)

G06413298

Courtesy of FORD MOTOR CO.
