Ambient Lighting Module Connector - C2301

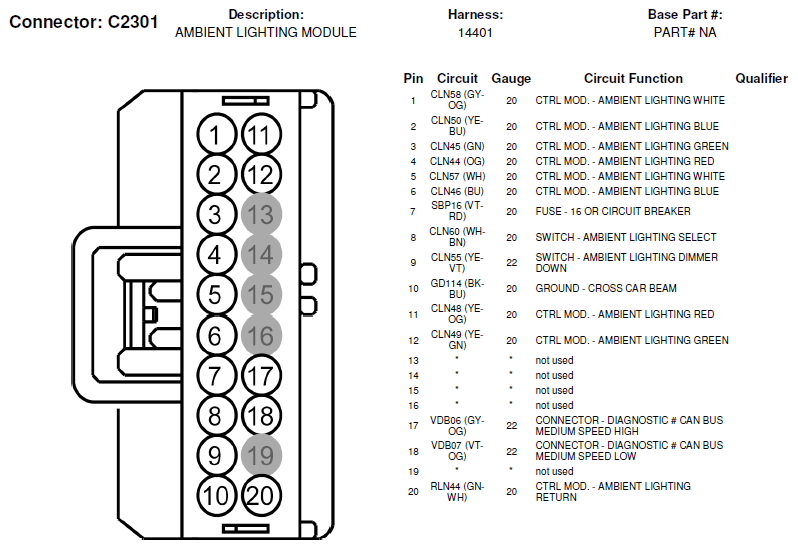

Fig 1: Ambient Lighting Module Connector End View (C2301)

G06413530

Courtesy of FORD MOTOR CO.
