Power Steering Control Module Connector End View - C1463A

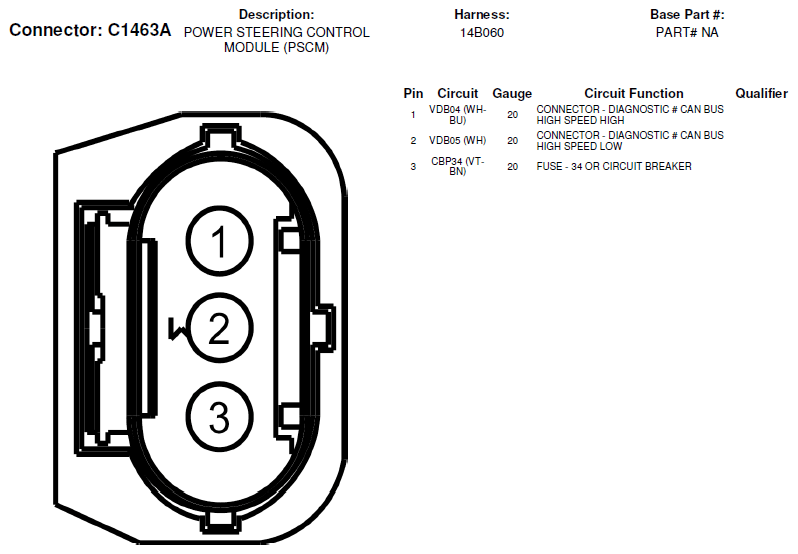

Fig 1: Power Steering Control Module Connector End View (C1463A)

G06413485

Courtesy of FORD MOTOR CO.
