Low/Reverse Clutch Assembly: Disassembly

NOTE: The low/reverse clutch plates are installed in the case during the Assembly procedure.

Remove the T7 thrust bearing and the shim from the center support.

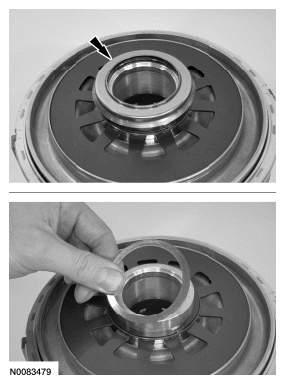

Fig 1: Removing T7 Thrust Bearing And Shim
Courtesy of FORD MOTOR CO.
Using the Clutch Spring Compressor 307-525, remove and discard the low/reverse clutch return spring retainer.

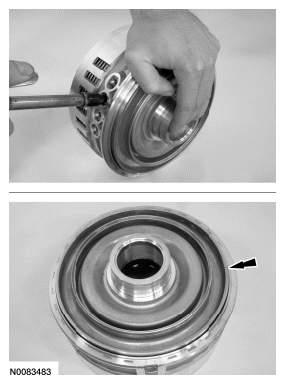

Fig 2: Locating Low/Reverse Clutch Return Spring Retainer
Courtesy of FORD MOTOR CO.
Remove and discard the low/reverse clutch return spring washer.

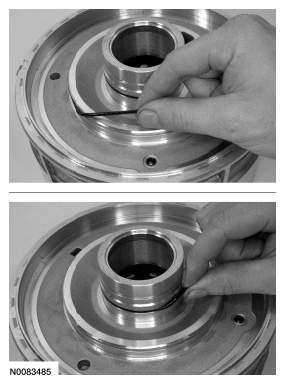

Fig 3: Locating Low/Reverse Clutch Return Spring Washer
Courtesy of FORD MOTOR CO.
Remove the low/reverse clutch return spring.

Fig 4: Locating Low/Reverse Clutch Return Spring
Courtesy of FORD MOTOR CO.
Apply a slight amount of air to the port, remove the low/reverse clutch piston from the low/reverse clutch drum.

Fig 5: Removing Low/Reverse Clutch Piston From Low/Reverse Clutch Drum
Courtesy of FORD MOTOR CO.
Remove and discard the low/reverse outer piston O-ring seals.

Fig 6: Removing Low/Reverse Outer Piston O-Ring Seals
Courtesy of FORD MOTOR CO.
Remove and discard the low/reverse drum O-ring seals.

Fig 7: Removing Low/Reverse Drum O-Ring Seals
