Hydraulic Circuit Identification and Function: Notes

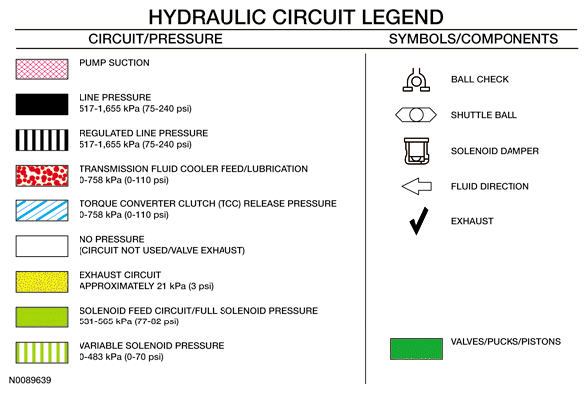

Fig 1: Hydraulic Circuit Identification And Function Chart

G06127058

Courtesy of FORD MOTOR CO.
