Trailer Brake Control Module Connector - C2142

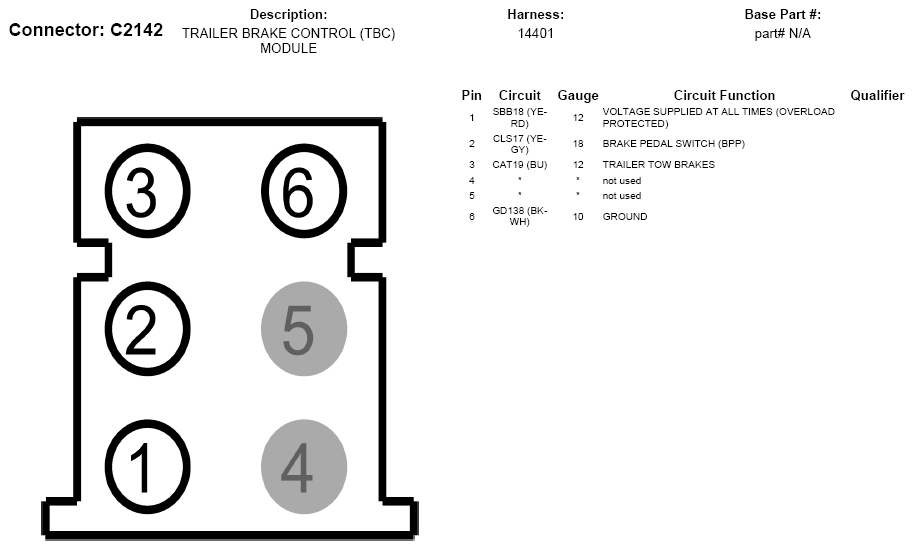

Fig 1: Trailer Brake Control Module Connector End View (C2142)

G05746731

Courtesy of FORD MOTOR CO.
