Fuel Pump Control Module Connector - C4033

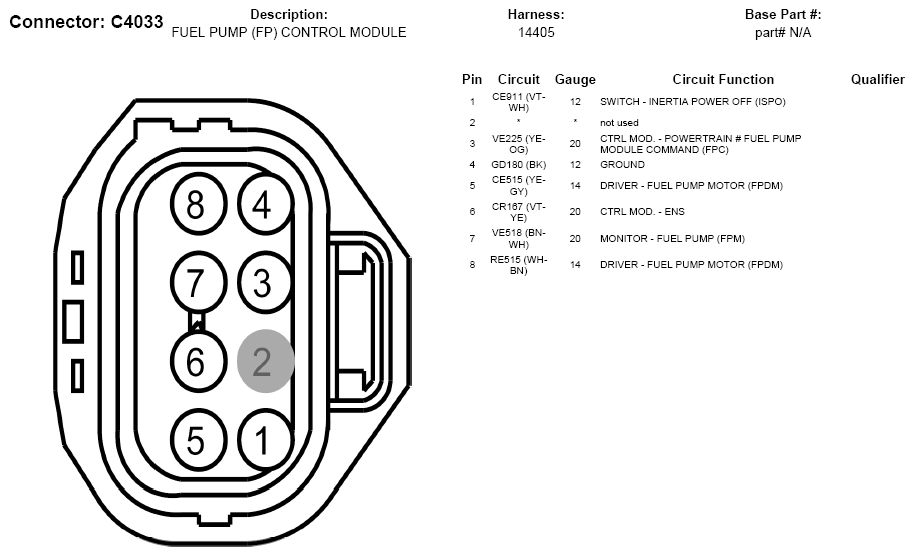

Fig 1: Fuel Pump Control Module Connector End View (C4033)

G05746828

Courtesy of FORD MOTOR CO.
